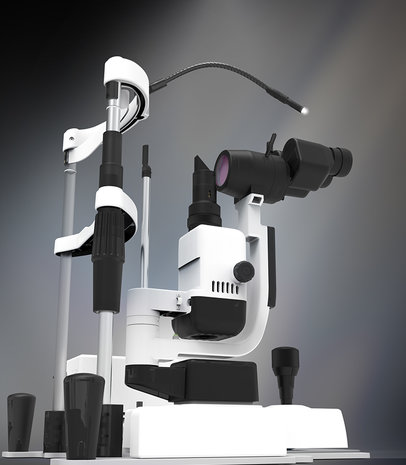

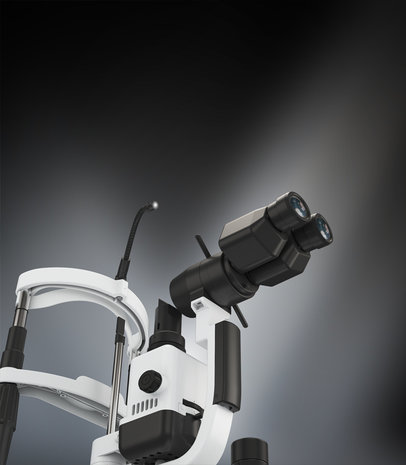

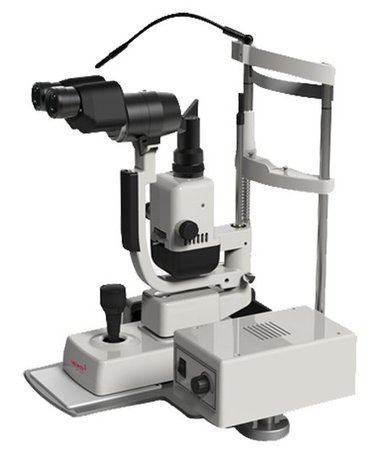

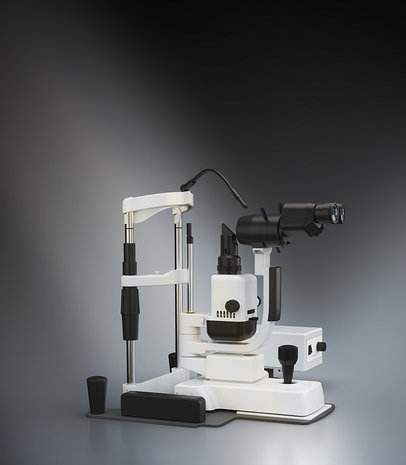

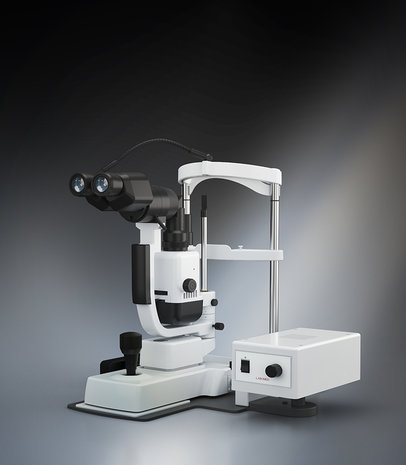

SL 20i Slit Lamp, 2 step, LED
A sturdy stand with fluid mechanical movement provides ergonomic benefits for hours of use.
Apochromatic optics provide the clearest possible view of the anterior and posterior segments of the patient’s eye.
The SL 20i is a nimble system that puts diagnostic essentials at the fingertips of eyecare professionals. This microscope delivers all the performance features of the SL 20i in optical and mechanical performance, but with a more compact illumination system. This ensures that SL 20i provides doctors with greater space efficiency. The SL 20i delivers ultimate value with a well-designed 2-step optical system and an efficient LED illumination system.
LABOMED’s MaxLite™ coated optics, standard in all SL 20i Slit-lamps, yield crisp and detailed images. MaxLite™ coatings provide the highest throughput of light, thanks to superb anti-reflective properties. These optics are antifungal, anti-fog and scratch resistant in addition to producing true-to-life resolution.
LABOMED SL 20i Slit lamps are sturdy intruments built with fluidity in movement and ergonomics to benefit hours of use.
The SL 20i accessories provide an array of options based on the needs of the doctor’s practice. IOP readings are available with the addition of a tonometer. A host of beam splitters and adapters make it possible to integrate third party cameras.
All optics are lead free and all paints used have antimicrobial additives that prevent the growth of bacteria on contact surfaces, ensuring a healthier working
environment. All parts in contact with patient are antitoxic and anti-irritation.
SL 20i
- Microscope: Galilean
- Magnification 2 step: 10X, 16X
- Eyepieces: WF 12.5X/18 mm, dioptre adj. ± 5 mm
- IPD range: 49 - 78 mm
- Slit length/width: 0 - 14 mm
- Slit apertures: 1, 2, 3, 5,8,10 & 14 mm
- Slit rotation: 0 - 180°
- Slit tilt: fixed
- Filters: Red free, Cobalt blue, Heat absorbing
Movement ranges:
- Longitudinal: (in/out) 80 mm
- Lateral: (left/right) 109 mm
- Vertical: (up/down) 30 mm
- Chin rest range: 80 mm
- Illumination: 5W LED
- Table base size: 367 mm X 360 mm X 5.5, Metal
- Weight: 25kg (packed)
- Optional accessories: Tonometer, Breath shield, Beam splitter, Cameras, Diffuser, Motorized table
Can adapt any Tonometer with mount available in market. No Special Tonometer Mount will be supplied!
