Camera, USB3.0, CMOS 10MP kit
The UC3MOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts. These measures ensure a rugged, robust solution with an increased lifespan when compared to other camera solutions.
| Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity
Dynamic Range
SN Ratio |
FPS/Resolution |
Binning |
Exposure |
|
10M/MT9J003(C)
1/2.3"(6.44x4.616)
|
1.67x1.67
|
0.31v/lux-sec
65.2dB
34dB
|
7.2@3584x2746
24.5@1792x1372
|
1x1,2x2,4x4
|
0.38ms~2000ms
|

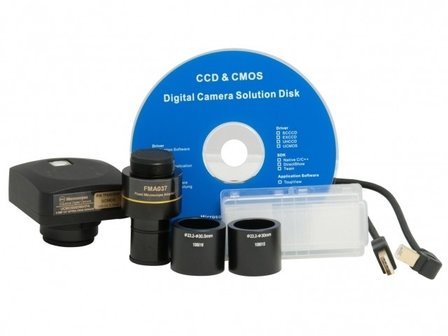

In the box you will find:
- Camera
- software CD with BMS_pix3
- Calibration slide
- Microscope adapter with optics
- tubse size adapter 23,2mm to 30,0 mm
- tube size adapter 23,2mm to 30,5 mm
-
| OTHER HARDWARE CONFIGURATION |
|
Spectral Range
|
380-650nm (with IR-filter)
|
|
White Balance
|
ROI White Balance/ Manual Temp-Tint Adjustment
|
|
Color Rendering Technique
|
Ultra Fine Color Engine
|
|
Capture/Control API
|
BMS_pix3, Native C/C?, C#, Directshow, Twain, Labview
|
|
Recording System
|
Still Picture and Movie
|
|
Cooling System*
|
Natural
|
| OPERATING ENVIRONMENT |
|
Operating Temperature
|
-10?â????~ 50?â????
|
|
Storage Temperature
|
-20?â????~ 60?â????
|
|
Operating Humidity
|
30~80%RH
|
|
Storage Humidity
|
10~60%RH
|
|
Power Supply
|
DC 5V over PC USB Port
|
| SOFTWARE ENVIRONMENT |
|
Operating System
|
Support Microsoft Windows 7 /8 /10 (32 & 64 bit)
OS X (Mac OS X), Linux
|
|
PC Requirements
|
CPU: Equal to Intel Core2 2.8GHz or Higher
|
|
Memory: 2GB or More
|
|
USB port: USB2.0 High-speed Port
|
|
Display: 17" or Larger
|
|
CD-ROM
|
Software:
Dimension of U3CMOS Series
|
Installation drawings. The UC3MOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
|
