A High-Precision Metallurgical Tool for Demanding Environments

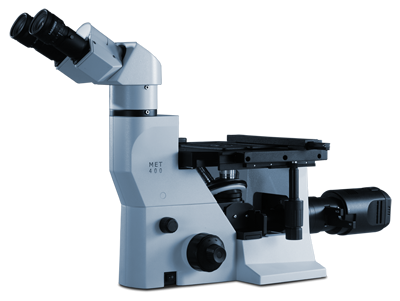

The LABOMED MET 400 is a workhorse tabletop metallurgical microscope that takes on a compact and highly durable form, making it the ideal candidate for daily inspection needs. Whether inspecting heat treated and stress tested metals, glass, plastics, chemicals, contaminants, or thin films, the MET 400 delivers pristine resolution and contrast while ensuring comfort over long periods of use.
MET 400 Advantages:
The ML Infinity Corrected Plan optical series promises image fidelity. Proprietary MaxLite™ coatings deliver superior anti-reflective and scratch resistant properties. Long working distance and efficient design provide for aberration-free imaging. A dry 100x objective is optional.
A slide-in polarizing kit with built-in polarizer/analyzer can be added as an option, providing 360° of light extinction.
An ultra bright 6 V/30 W light source with a high color rendition index faithfully illuminates specimens, particularly those used in color sensitive applications such as photomicrography.
Inverted Metallurgical Microscopy
Stand |
Ergonomic sturdy stand made of anti-rust material |
Viewing Body |
Siedentopf Trinocular head; 30° inclined, fixed; IPD 52- 75 mm |
Eyepiece |
WF 10X/18 mm with eye guards, diopter adjustment ± 5 mm and diopter lock;
optional: WF 12.5X/18 mm
Focusable Wide Field eyepieces 10x/22 mm, with foldable eye guard, antifungal |
Nosepiece |
Reverse angle quadruple nosepiece with click stops and rubber grip |
Objectives |
ML series infinity corrected, DIN Plan Achromatic objectives 5x, 10x, 20x and 50x; antifungal, MaxLite (TM) coated; Optional 100x Dry objective |
Focusing |
Coaxial coarse and fine focusing system with tension adjustment. Focus graduation is 2 µm per division |
Illumination |
Köhler episcopic illumination system with diffuser; Halogen 6V-30W with intensity control; 100 V - 240 V universal power supply |
Stage |
Fixed stage with specimen holder - 3 types (38 mm, 55 mm, 65 mm). Optional mechanical stage |
Electronics
Optional
|
Universal power supply (110 V-240 V) with built-in voltage stabilizer
100x Dry objective; Mechanical stage; Adapters for video and digital cameras
|
Package Contents
- Power Cable (6ft)
- Nylon Dust Cover & Cleaning Cloth
- Styrofoam Casing
Accessories (Optional)
- Pointers & Micrometer Reticules
- Polarizing Kit
- Auxiliary Objectives and Eyepieces
- Digital Cameras and Adapters
-
MET 400 Brochure
Learn more about the MET 400's unique value offering.
|
User Manual
Learn all about the MET 400, its functions, and more
|
