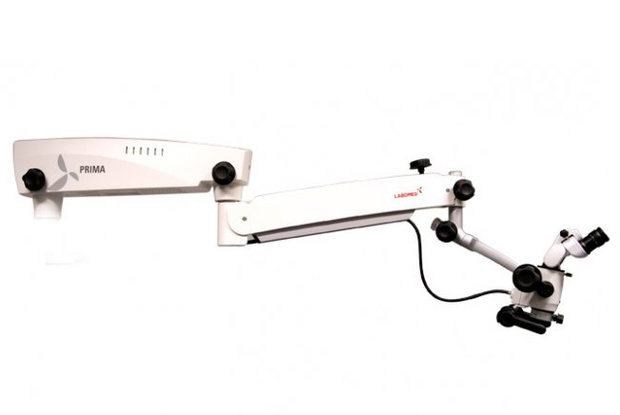

Prima DNT Microscope long arm without mounting system and with CMO 250 mm
The Prima DNT dental microscope reflects a performance-driven and modular design for the evolving needs of today's dental professional. With an intelligent LED illumination system, crisp optics and fluid articulation, the Prima DNT is a technology leader among dental operating microscopes.
A super bright LED delivers over 135,000 Lux with a natural daylight colour temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make for the most compact arm system around.
An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.
The optional NuVar™ objective delivers variable working distances, making the Prima DNT more versatile and user friendly for dental professionals.
The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.
Microscope Specifications
-
Prima DNT microscope with an intelligent LED illumination system
-
Mounting system: no mounting system
-

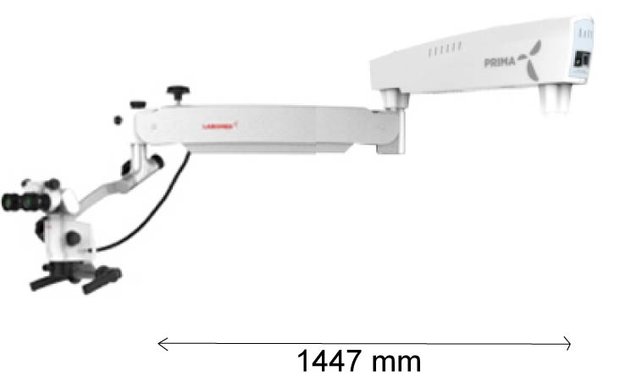

Suspension arm: 1447 mm
-
Magnichanger: 5 step magnichanger with magnification 0.4x, 0.6x, 1.0x, 1.6x and 2.5x
-
Viewing bodies: ergonomic binocular tubes 0º-210º tiltable, IPD range 55-75 mm, f=170 mm
-
Objective: lens f=250 mm with a manual fine focus control knob and sterilizable cap
-
Eyepieces: WF 10X/18 mm with foldable eye guards, diopter adjustment ± 5 mm with diopter lock
-
Observation head: ergonomic adjustable handgrips for observation head
-
Microscope carriers: 120º carrier
-
Illumination: fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 135,000 Lux
-
Input: AC 115-240V, 50/60Hz
-
Filter: yellow and green filter with a filter holder
-
Vertical movement of arm: 600 mm
-
Fuse: quick-acting fuse 1.0 Amp
-
Standard accessories: dust cover for microscope observation head and illumination box
PACKAGE CONTENTS:
> Prima DNT microscope long arm without mounting system
> Objective CMO 250 mm
> Sterilizable knob covers
> Nylon dust cover
DIMENSIONS (mm)
MOUNTING (mm)
CONFIGURATIONS
