Prima ENT Microscope Basic with 90º head, CMO 250 mm, long arm and without mounting system
A performance driven design for Ear/Nose/Throat professionals. The Prima ENT microscope reflects a performance-driven design with modularity in mind for the evolving needs in ENT clinical and surgical routines. With an intelligent LED coaxial illumination system, crystal clear optics, and fluid arm movement, the Prima ENT microscope stands apart as a smart choice.

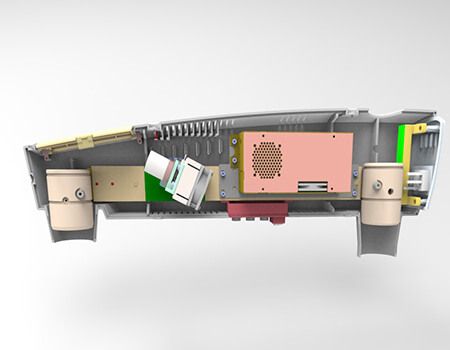

A super bright LED delivers over 135,000 Lux with a natural daylight colour temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make it the most compact arm system around.
An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free, durable optics.
The optional NuVar™ objective delivers variable working distances, making the Prima ENT more versatile and user friendly for dental professionals.
The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A rotoplate and extender kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.
Microscope Specifications
-
Prima ENT microscope with an intelligent LED illumination system
-
Mounting system: no mounting system
-

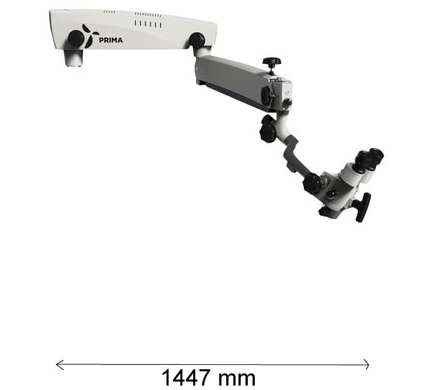

Suspension arm: 1447 mm
-
Magnichanger: 5 step magnichanger with magnification 0.4x, 0.6x, 1.0x, 1.6x and 2.5x
-
Viewing bodies: binocular tubes 90º model straight, IPD range 55-75 mm, f=170 mm
-
Objective: lens f=250 mm with a manual fine focus control knob
-
Eyepieces: WF 10X/18 mm with foldable eye guards, diopter adjustment ± 5 mm with diopter lock
- Observation head: ergonomic T-handle for observation head

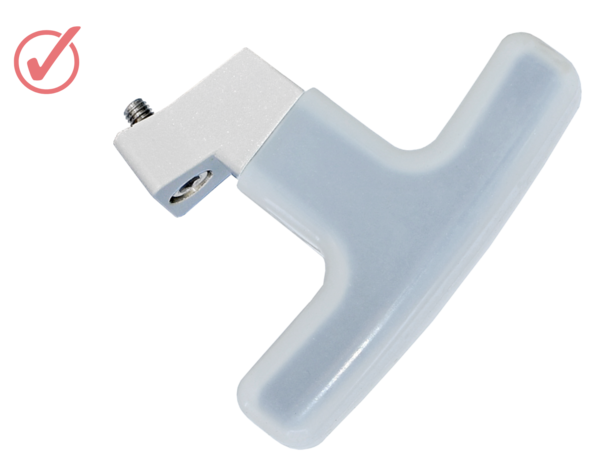

- Handle: T-handle with cover (included)
-
Microscope carriers: straight down mounted but also delivered with 120º carrier
-
Illumination: fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 135,000 Lux
-
Input: AC 115-240V, 50/60Hz
-
Filter: yellow and green filter with a filter holder
-
Vertical movement of arm: 600 mm
-
Fuse: quick-acting fuse 1.0 Amp
-
Standard accessories: dust cover for microscope observation head and illumination box
PACKAGE CONTENTS:
> Prima ENT microscope
> Objective CMO 250 mm
> Sterilizable knob covers
> Nylon dust cover

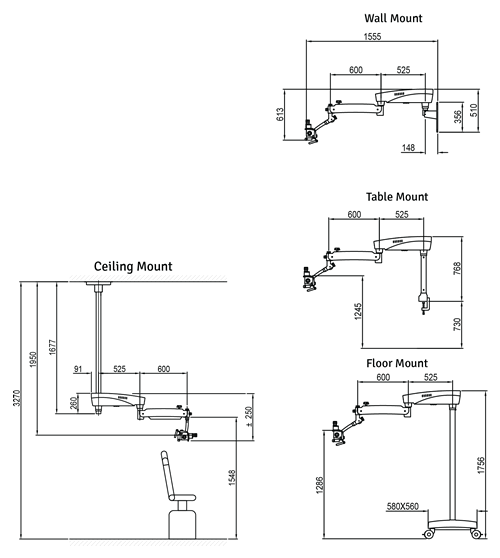

DIMENSIONS (mm)
MOUNTING (mm)
CONFIGURATIONS
