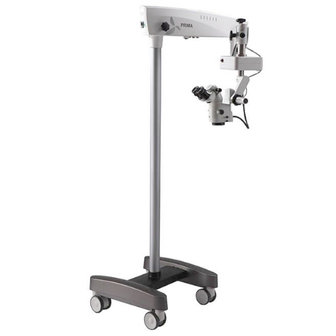

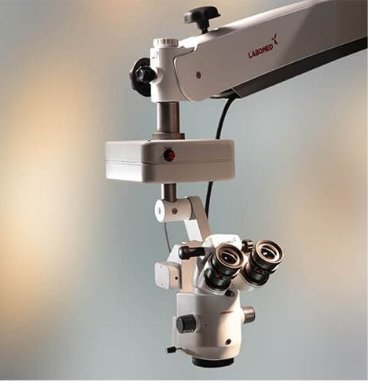

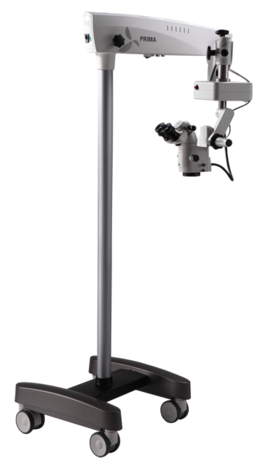

Prima OPH Microscope with 45º head, CMO 200 mm and H-base
High value technology in cataract removal; the Prima OPH is a versatile microscope designed for both surgical and clinical environments. With an intelligent LED illumination system that runs long and cool. An Apochromatic optical system, superb RedReflex system and motorized movement. This microscope delivers on the promise of high performance at affordability.
A super bright LED produces over 105,000 Lux with a color temperature of 5700K. A run time of 60,000 hours eliminates the need for bulb change. Electronics built directly into the swivel arm make the Prima OPH the most compact solution in its class.
An Apochromatic optical system produces sharp and aberration-free images at every step. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics.
RedReflex is made possible in the Prima OPH thanks to an ingenious optical design, enabling visualization of an illuminated retina for easy detection of ruptured vessels, arteries, or damage to the optic disc.

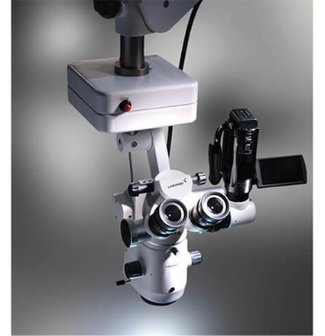

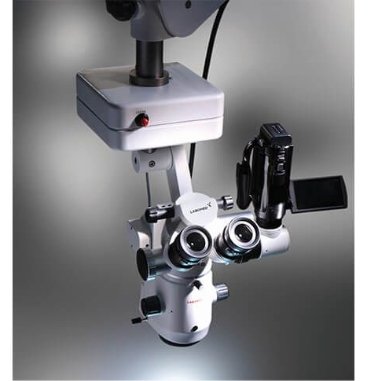

Ophthalmologists can use a digital SLR or video camera, thanks to a wide selection of adapters available through the ProLine™.
MICROSCOPE SPECIFICATIONS
-
Prima OPH microscope with an intelligent LED illumination system
-
Binocular tube: 45° inclined head
-
Eyepiece: WF 10X/16 mm with eye guards, diopter adjustment ± 5 mm and diopter lock
Optional: WF 12.5X/16 mm
-
Apochromatic magnichanger: 5 step > 0.4X, 0.6X, 1.0X, 1.6X and 2.5X
-
Objective: f-200 mm
-
Illumination: 50W LED, 105,000 Lux
-
Built-in-Filters: Green & Blue
-
Vertical movement of arm: 550 mm
-
Power supply: 100-240V, 50/60HZ, 1.6 Amp
-
Microscope carriers:

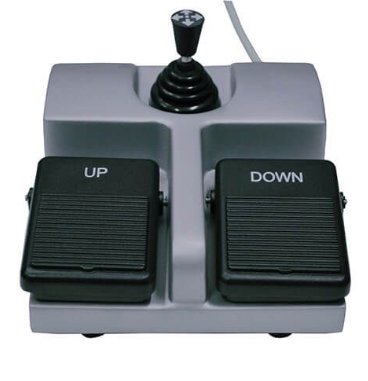

Multi-axial (XYZ) foot control (PRIMA OPH X-Y & Z AXIS)
Single axis (Z) foot control (PRIMA OPH Z AXIS)
- Optional accessories: 0-210° tiltable ergonomic head, double beam splitter, assistant binocular attachment, ProLine range of camera adapters
PACKAGE CONTENTS:
> Prima OPH microscope 45º head inclined
> Objective CMO 200 mm
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover
DIMENSIONS (mm)
CONFIGURATIONS
