Prima Mµ Ergo training microscope with table mount and CMO 250 mm

The Prima Mµ is intended for routine inspection and in screening clinical environments. A well-designed apochromatic optical system with a high output LED built directly into the microscope housing provides users with a compact solution. The arm system has been carefully designed to mitigate vibration and lower the system's center of gravity to provide a more stable, lighter weight solution.

A single 27 watt LED intelligently drives the illumination system to deliver over 75,000 Lux at a carefully selected color temperature of 5700K, making Prima Mµ's eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours.

An Apochromatic 3-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch-resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through long working distance NuVar 10. The Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.


The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.


Microscope Specifications

• Prima Mµ, Ergo trainer microscope with an intelligent LED illumination system

• Mounting system: table mount on pillar

• Suspension arm: 996 mm

• Magnichanger: 3 step magnichanger with magnification 0.6x, 1.0x and 1.6x

• Viewing bodies: ergonomic binocular tubes 0º-210º tiltable, IPD range 55-75 mm, f=170 mm

• Objective: lens f=250 mm with a manual fine focus control knob and sterilizable cap

• Eyepieces: WF adjustable eyepiece 10x/FN 16mm with eye guards

• Observation head: ergonomic adjustable handgrips for observation head

• Microscope carriers: 155º carrier

• Illumination: in magnichanger integrated illumination 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux

• Input: AC 115-240V, 50/60Hz

• Filter: yellow and green filter with filter holder

• Vertical movement of arm: 600 mm

• Fuse: quick-acting fuse 1.0 Amp

• Standard accessories: dust cover for microscope observation head and illumination box

> Prima Mµ, Ergo training microscope
> Objective CMO 250 mm
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover

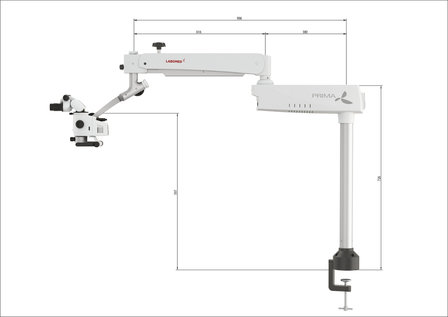

DIMENSIONS (mm)

CONFIGURATIONS
