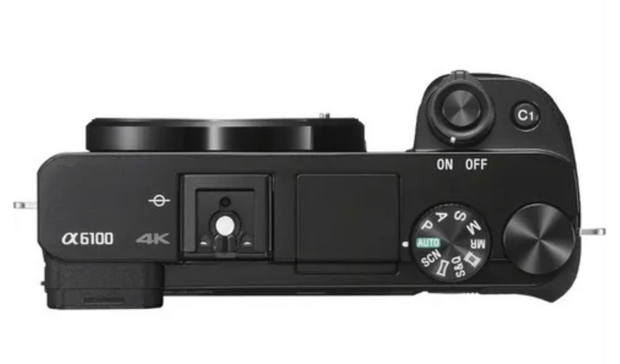

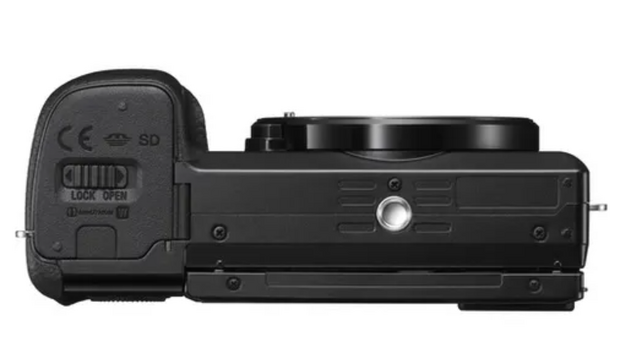

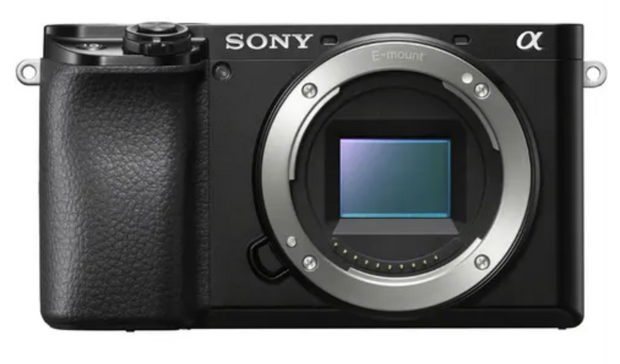

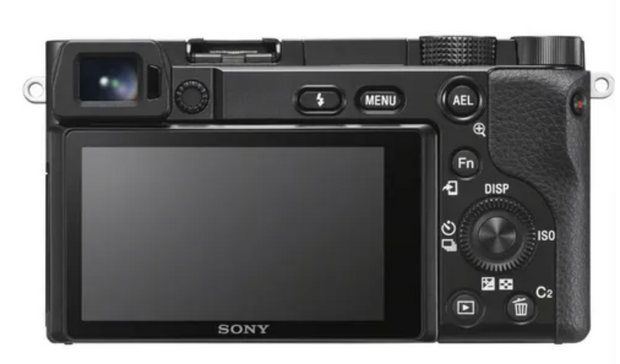

The ultimate solution - Sony A6100 camera
Pairing the Sony A6100 with Labomed medical microscopes offers a seamless system for capturing and sharing high-quality images and videos. Whether using the LCD screen for real-time review or connecting to the Monitor FlexScan EV2460 [A612099-458] for a larger view. This setup ensures precise documentation and effortless collaboration with medical professionals and their teams.
âś… Ultra-fast autofocus with 0.02-second focus lock and 425 focus points
âś… Advanced Eye Autofocus for crisp, sharp imaging
âś… Real-time tracking for exceptional accuracy

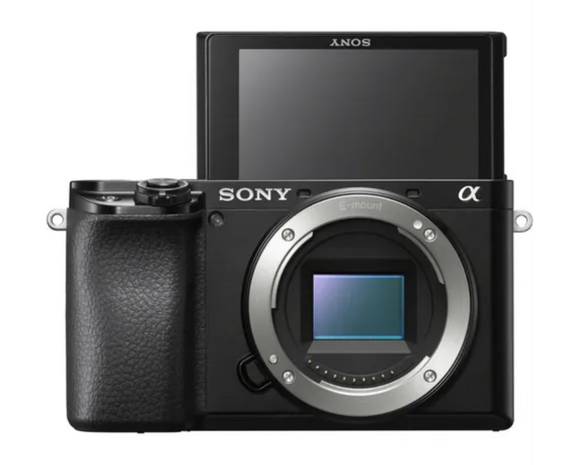

âś… 180-degree tiltable LCD screen for quick adjustments during procedures
âś… Intuitive Touch Focus, Touch Shutter and Touch Pad AF for easy image and video capture
âś… Built-in WiFi® and NFC technology for seamless file transfer to monitors, smartphones, or tablets
âś… 24.2 MP APS-C Exmor CMOS sensor and BIONZ-X™ image processor for outstanding image quality
âś… ISO range up to 51200 for clear shots in challenging lighting conditions
âś… 4K video recording capabilities with fast hybrid autofocus, ideal for precise documentation during medical procedures
MAIN SPECIFICATIONS
Type: APS-C type (23.5 x 15.6mm) Exmor CMOS sensor
ISO sensitivity (Recommended Exposure Index): Still images: ISO 100-32000 (ISO numbers up to ISO 51200 can be set as expanded ISO range.), AUTO (ISO 100-6400, selectable lower limit and upper limit) Movies: ISO 100-32000 equivalent, AUTO (ISO 100-6400, selectable lower limit and upper limit)
USB Terminal: Multi/Micro USB
Number of pixels (effective): Approx. 24.2 megapixels
Still images: Approx. 380 shots (Viewfinder) / Approx. 420 shots (LCD monitor) (CIPA standard)
USB Terminal: Multi/Micro USB
Camera type: Interchangeable lens digital camera with built-in flash
Lens mount: E-mount
IMAGE SENSOR
Type: APS-C type (23.5 x 15.6mm) Exmor CMOS sensor
Number of pixels (total): Approx. 25.0 megapixels
Color filter: R, G, B primary color
Number of pixels (effective): Approx. 24.2 megapixels
Image sensor aspect ratio: 3:2
RECORDING SYSTEM (STILL IMAGE)
Recording format: JPEG (DCF Ver. 2.0, Exif Ver.2.31, MPF Baseline compliant), RAW (Sony ARW 2.3 format)
Image size (pixels) [1:1]: L: 4000 x 4000 (16M) M: 2832 x 2832 (8.0M) S: 2000 x 2000 (4.0M)
Image quality modes: RAW & JPEG (Extra fine, Fine, Standard), JPEG (Extra fine, Fine, Standard)
Picture Effect: 13 types: Posterization (Color), Posterization (B/W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera (Normal/Cool/Warm/Green/Magenta), Soft High-key, Soft Focus (High/Mid/Low), HDR Painting (High/Mid/Low), Rich-tone Monochrome, Miniature (Auto/Top/Middle (H)/Bottom/Right/Middle (V)/Left), Watercolor, Illustration (High/Mid/ Low)
Color space: sRGB standard (with sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS Color
Image size (pixels) [3:2]: L: 6000 x 4000 (24M) M: 4240 x 2832 (12M) S: 3008 x 2000 (6.0M)
Image size (pixels) [16:9]: L: 6000 x 3376 (20M) M: 4240 x 2400 (10M) S: 3008 x 1688 (5.1M)
Image size (pixels) [Sweep Panorama]: Wide: horizontal 12,416 x 1,856 (23M), vertical 5,536 x 2,160 (12M), Standard: horizontal 8,192 x 1,856 (15M), vertical 3,872 x 2,160 (8.4M)
14bit RAW: Yes
Creative Style: Standard, Vivid, Portrait, Landscape, Sunset, Black & White, Sepia (Contrast (-3 to +3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3 steps))
Dynamic Range functions: Off, Dynamic Range Optimizer (Auto/Level (1-5)), Auto High Dynamic Range (Auto Exposure Difference, Exposure Difference Level (1-6 EV, 1.0 EV step))
RECORDING SYSTEM (MOVIE)
Recording format: XAVC S and AVCHD format Ver. 2.0 compliant
Audio recording format: XAVC S: LPCM 2ch, AVCHD: Dolby Digital (AC-3) 2ch and Dolby Digital Stereo Creator
Creative Style:v Standard, Vivid, Portrait, Landscape, Sunset, Black & White, Sepia (Contrast (-3 to +3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3 steps))
Color space: xvYCC standard (x.v.Color when connected via HDMI cable) compatible with TRILUMINOS Color
Video compression: XAVC S: MPEG-4 AVC/H.264, AVCHD: MPEG-4 AVC/H.264
Picture Effect: Posterization (Color), Posterization (B/W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera (Normal/Cool/Warm/Green/Magenta), Soft High-key
SLOW & QUICK MOTION (S&Q)
NTSC mode: 1fps,2fps,4fps,8fps,15fps,30fps,60fps,120fps
PAL mode: 1fps,2fps,3fps,6fps,12fps,25fps,50fps,100fps
MOVIE FUNCTION
Audio Level Display: Yes
PAL/NTSC Selector: Yes
Audio Rec Level: Yes
Proxy Recording: Yes (1280 x 720 (Approx.9Mbps))
Auto Slow Shutter: Yes
RECORDING SYSTEM
Location information Link from smartphone: Yes
Memory card slot: Multi slot for Memory Stick Duo/SD memory card
File system: FAT12, 16, 32, exFAT
Media: Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro (M2), SD memory card, SDHC memory card (UHS-I compliant), SDXC memory card (UHS-I compliant), microSD memory card, microSDHC memory card and microSDXC memory card.
Noise reduction: Long exposure NR: On/Off , available at shutter speeds longer than 1 sec. High ISO NR: Normal/Low/Off.
WHITE BALANCE
Modes: Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent (Warm White / Cool White / Day White / Daylight) / Flash /Underwater/ Color Temperature (2500 to 9900K) & color filter (G7 to M7 (57-step), A7 to B7 (29-step)) / Custom
FOCUS SYSTEM
Type: Fast Hybrid AF (phase-detection AF/contrast-detection AF)​​​​​​
Focus point: 425 points (phase-detection AF) / 425 points (contrast-detection AF)
AF mode: AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus
Eye-start AF: Yes (only with LA-EA2 or LA-EA4 attached (Sold separately))
Other features: Predictive control, Focus lock
AF illuminator range: Approx. 0.3- approx. 3.0m (with E PZ 16-50mm F3.5-5.6 OSS lens attached)
Focus sensor: Exmor CMOS sensor
Sensitivity range: EV-2 to EV20 (ISO100 equivalent with F2.0 lens attached)
Focus area: Wide (425 points (phase-detection AF), 425 points(contrast-detection AF)) / Zone / Center / Flexible Spot (S/M/L) /Expanded Flexible Spot/ Tracking ( Wide / Zone / Center / Flexible Spot (S/M/L)/Expanded Flexible Spot)
AF illuminator: Yes (with Built-in LED type)
AF micro adjustment: Yes (Sold separately) with LA-EA2 or LA-EA4
EXPOSURE CONTROL
Metering type: 1200-zone evaluative metering
Metering sensitivity: EV-2 to EV20 (at ISO100 equivalent with F2.0 lens attached)
Exposure modes: AUTO (iAuto/Superior Auto), Programmed AE (P), Aperture priority (A), Shutter-speed priority (S), Manual (M), Movie (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M), Slow & Quick, Motion (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M), Sweep Panorama and Scene Selection
Exposure compensation: +/- 5.0EV (1/3 EV, 1/2 EV steps selectable)
AE Lock: Locked when shutter button is pressed halfway. Available with AE lock button. (On/Off/Auto)
Metering sensor: Exmor CMOS sensor
Modes: Multi-segment, Center-weighted, Spot
Scene Selection: Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Hand-held Twilight, Night Portrait and Anti Motion Blur
Bracketing: Bracket: Cont., Bracket: Single, 3/5 frames selectable. With 3 frames, in 1/3, 1/2, 2/3, 1.0, 2.0, or 3.0 EV increments. With 5 frames, in 1/3, 1/2, 2/3 EV increments.
ISO sensitivity (Recommended Exposure Index): Still images: ISO 100-32000 (ISO numbers up to ISO 51200 can be set as expanded ISO range.), AUTO (ISO 100-6400, selectable lower limit and upper limit) Movies: ISO 100-32000 equivalent, AUTO (ISO 100-6400, selectable lower limit and upper limit)
VIEWFINDER
Type: 1.0 cm (0.39 type) electronic viewfinder (color)
Magnification: Approx. 1.07x (35mm camera equivalent: Approx. 0.70x) with 50mm lens at infinity, -1m-1
Eye point: Approx. 23mm from the eyepiece lens, 21.4mm from the eyepiece frame at -1m-1 (CIPA standard)
Number of dots: 1 440 000 dots
Field coverage: 100%
Diopter adjustment: -4.0-+3.0 m-1
LCD SCREEN
Type: 7.5cm (3.0-type) wide type TFT
Number of dots (total): 921 600 dots
Focus Check: Yes Focus Magnifier (5.9x, 11.7x)
Touch panel: Yes
Brightness control: Manual (5 steps between -2 and +2), Sunny Weather mode
Adjustable angle: Up by approx. 180 degrees, Down by approx. 74 degrees
FACE DETECTION
Modes: Face Priority in AF (On/Off), Face Priority in Multi Metering (On/Off), Regist. Faces Priority (On/Off)
AUTO OBJECT FRAMING
OTHER FEATURES
Interval recording: Yes
Touch Shutter: Yes
Self-portrait Self-timer: Yes
Bright Monitoring: Yes
Clock Function,Setting: Yes
Shop Front Mode: Yes
Smile Shutter: Smile shutter (selectable from 3 steps)
Touch Focus: Yes (Touch Focus/Touch Pad/Touch Tracking)
Help guide: Yes
Area Setting: Yes
CLEAR IMAGE ZOOM
Still images: Approx. 2x
Movies: Approx. 1.5x (4K), Approx. 2x (HD)
DIGITAL ZOOM
Smart zoom (Still images): M: Approx. 1.4x S: Approx. 2x
Digital zoom (Movie): Approx. 4x
Digital zoom (Still images): L: Approx. 4x M: Approx. 5.7x S: Approx. 8x
SHUTTER
Type: Electronically-controlled, vertical-traverse, focal-plane type
Shutter speed: Still images:1/4000 to 30 sec, Bulb, Movies: 1/4000 to 1/4 (1/3 steps), up to 1/50 in AUTO mode (up to 1/25 in Auto slow shutter mode)
Electronic Front Shutter Curtain: Yes (ON/OFF)
Flash sync. Speed: 1/160 sec.
Silent Shooting: Yes (ON/OFF)
FLASH
Type: Built-in flash
Flash coverage: 16mm (focal-length printed on the lens body)
Flash compensation: +/- 3.0 EV (switchable between 1/3 and 1/2 EV steps)
Recycling time: Approx. 4 sec
FE level lock: Yes
Guide No.: 6 (in meters at ISO 100)
Control: Pre-flash TTL
Flash modes: Flash off, Autoflash, Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (on/off selectable), Wireless control and Hi-speed sync
External flash: Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adaptor for flash compatible with Auto-lock accessory shoe
Wireless control: Yes (Light signal: Available with Fill-flash, Slow Sync., Hi-speed sync. /Radio signal: Available with Fill-flash, Rear Sync., Slow Sync., Hi-speed sync.)
DRIVE
Drive modes: Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket and DRO bracket
Number of frame recordable* (approx.): JPEG Extra fine L: 76 frames, JPEG Fine L: 77 frames, JPEG Standard L: 77 frames, RAW: 33 frames, RAW&JPG: 31 frames
Self-timer: 10 sec. delay/5 sec. delay/2 sec. delay/Continuous self-timer (3 frames after 10 sec. delay/5 frames after 10 sec. delay/3 frames after 5 sec. delay/5 frames after 5 sec. delay/3 frames after 2 sec. delay/5 frames after 2 sec. delay)/Bracketing self-timer (Off/2 sec. delay/5 sec. delay/10sec. delay)
Speed (approx., max.): Continuous shooting: Hi+: 11 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps
PLAYBACK
Modes: Single (with or without shooting information Y RGB histogram & highlight/shadow warning), 12/30-frame index view, Enlarged display mode (L: 16.7x, M: 11.8x, S: 8.3x, Panorama (Standard): 19.2x, Panorama (Wide): 29.1x), Auto Review (10/5/2 sec,Off), Image orientation (Manual/Off selectable), Slideshow, Panorama scrolling, Folder selection (Date/ Still/ AVCHD/XAVC S HD/XAVC S 4K), Forward/Rewind (movie), Delete, Protect, Rating and Display as Group
Photo Capture: Yes

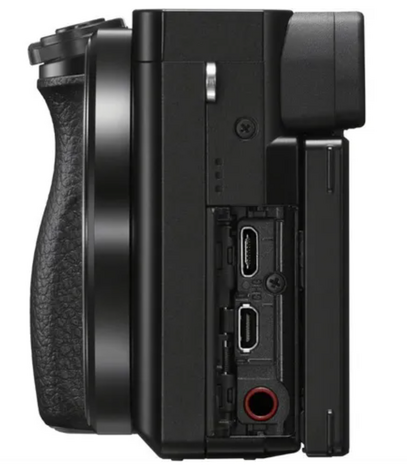

INTERFACE
PC interface: Mass-storage, MTP, PC remote
Bluetooth: Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band))
Multi Interface Shoe: Yes
Multi / Micro USB Terminal: Yes
NFC: Yes (NFC forum Type 3 Tag compatible)
Wireless LAN(built-in): Yes (Wi-Fi Compatible, IEEE 802.11b/g/n (2.4GHz band) )
HDMI connector: HDMI micro connector (Type-D), BRAVIA Sync (Control for HDMI), PhotoTV HD and 4K movie output/4K still image PB
Mic Terminal: Yes (3.5 mm Stereo minijack)
AUDIO
Microphone: Built-in, stereo
Speaker: Built-in,monaural
PRINT
Compatible standards: Exif Print, Print Image Matching III, DPOF setting
CUSTOM FUNCTION
Custom key settings: Yes
Programmable Setting: Yes (Body 3 sets /memory card 4 sets)
My Menu: Yes
LENS COMPENSATION
Lens compensation: Peripheral Shading, Chromatic Aberration, Distortion
POWER
Battery: One rechargeable battery pack NP-FW50
Movies (actual recording): Approx. 70 min (Viewfinder) / Approx. 75 min (LCD monitor) (CIPA standard)
Internal battery charge: Yes
Still images: Approx. 380 shots (Viewfinder) / Approx. 420 shots (LCD monitor) (CIPA standard)
Movies (continuous recording): Approx. 125 min (Viewfinder) / Approx. 125 min (LCD monitor) (CIPA standard)
USB power supply: Yes
POWER CONSUMPTION
With Viewfinder: Still images: approx. 2.3W (with E PZ 16-50mm F3.5-5.6 OSS lens attached), Movies: approx. 3.5W (with E PZ 16-50mm F3.5-5.6 OSS lens attached)
With LCD screen: Still images: approx. 2.1W (with E PZ 16-50mm F3.5-5.6 OSS lens attached), Movies: approx. 3.5W (with E PZ 16-50mm F3.5-5.6 OSS lens attached)
OPERATING TEMPERATURE
Operating temperature: 32 - 104 degrees F / 0 - 40 degrees C
DIMENSIONS AND WEIGHT
DIMENSIONS (W x H x D): Approx. 120.0mm x 66.9mm x 59.4mm, Approx. 120.0mm x 66.9mm x 49.9mm (FROM GRIP TO MONITOR)
With battery and memory Card included: Approx. 396 g
Body only: Approx. 352 g
Stay Updated with Support by Sony
Maximize the potential of your Sony products with the Support by Sony app. Get instant notifications for firmware updates and access helpful resources like manuals and FAQs. By bookmarking your product, you'll ensure you're always in the loop and never miss an important update.
VIDEO
Download Support by Sony
SOFTWARE
What’s in the Box
Sony A6100 body (black)
Body cap
Sony NP-FW50 battery
Micro-USB cable
Shoulder strap
Eyepiece cup
