A brilliant new era in surgical imaging technology is here. Stella promotes greater flexibility, performance and affordability in ENT, DNT, neuro, spinal and reconstructive surgery. A multi-functional microscope, Stella offers a suite of features that will enhance surgical precision and comfort, from a 10-way foot-controlled motorized apochromatic optical system, the easy adaptation of video accessories, multiple interoperative viewing modes, as well as articulation and control features that make the microscope more nimble and responsive to operative needs. A sturdy stand with counterbalance rotation and market-leading service and support ensure operators a lifetime of carefree use.

Stella provides surgeons with a waterproof foot control  (10-way) that will effortlessly drive X, Y, and Z-axis motors alongside. Magchange and light intensity adjustment functions.

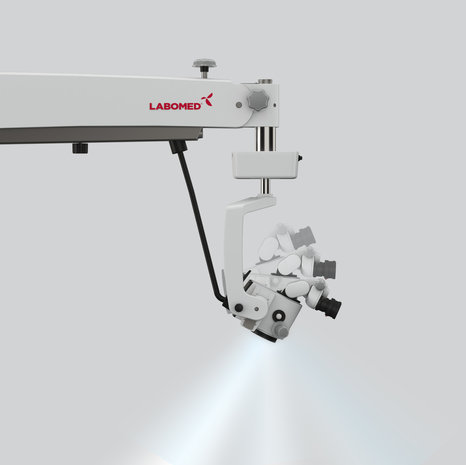

Conveniently housed in the arm system is an IR and UV safe LED (6500 kelvin) that will provide cool, crisp and bright-white illumination (rated 60,000 hours of LED life).

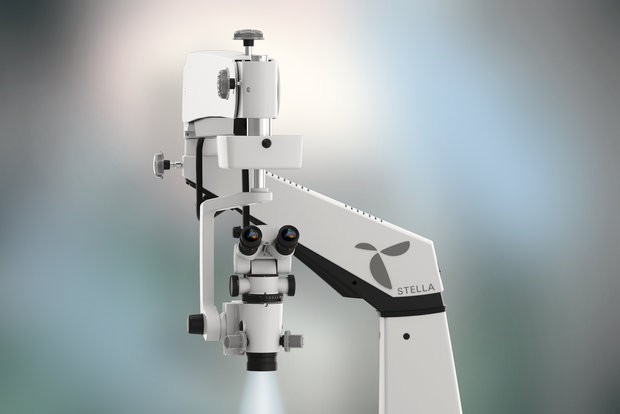

Unlike other cylindrical columns, Stella’s novel triangular column system will pivot with the arm, distributing weight more evenly while maintaining a near-perfect centre of gravity for vibration-free operation. A F=200-400mm NuVar variable working distance apochromatic objective delivers a superior depth of field and versatility not just for varied procedures, but also accommodates multi-user environments.



MICROSCOPE SPECIFICATIONS

• Prima Neuro microscope with an intelligent LED illumination system

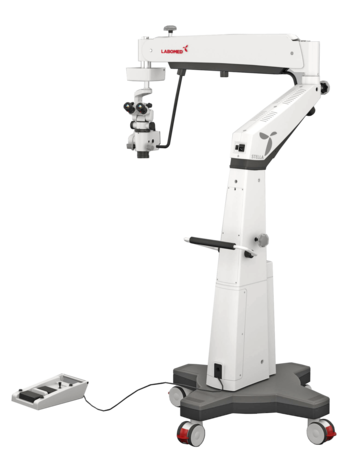

• Stand: Robust, vibration-free stand on cross base with four lockable castors
• Observation tubes: Standard: 0-210° Binocular tiltable head F=170 mm configured with Double beam splitter & Double Iris attachment for depth of field management
• Stereo Base: 24mm
• IPD Range: 49-78mm
• Eyepieces: Standard: WF 10X/18mm with eye guards (optional WF 12.5X/18mm with eye guards)
• Dioptre Adjustment: ±7mm
• Magnichanger: MaxLite coated, Apochromatic, motorized stepper zoom system 5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
• Microscope Tilt: 0-180° (Tiltable and auto-locked at any position)
• Objective: Standard NuVar 20 variable CMO, F=295-495 mm, WD=200-400 mm
• FOV diameter: 128.4 mm–12.30 mm
• Magnification Range: 1.4X–14.7X
• Illumination field diameter: 100-160 mm
• Fine focus: Range 40mm, motorized noise-free
• XY Travel: 50 X 50mm with auto reset
• Light source: UV & IR free 50W LED
• LUX: 150K
• Maximum Wattage: 200Watts
• Colour temperature: 6500k
• Built-in filters: Flip in/out blue-blocking (yellow), Green & Blue filter
• Optional accessories: Assistant binocular attachment, Proline range of camera adapters, Smartphone adapters
• Total Arm Reach(Max): 1500mm
• Vertical movement of suspension arm: ±300mm
• Foot Switch: 10 functions wired footswitch for XYZ, magchanger & intensity control
• Max. Suspension load: 12kg
• Base & column weight: 170kg
• Arm Weight: 24.5kg
• X-Y, magchanger, head weight: 8.7kg

PACKAGE CONTENTS:
> Stella Neuro microscope with floor mount
> Objective NuVar 20
> Tools for securing base and pillar
> Sterilizable knob covers
> Nylon dust cover


DIMENSIONS (mm)
